Mariadb in Kubernetes

Introduction

This documentation shows you how you can configure a Minikube Container as kubernetes cluster to deploy 5 replicas of mariadb.

Steps:

Start Ubuntu or any Linux

Install Minikube

curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-linux-amd64
sudo install minikube-linux-amd64 /usr/local/bin/minikube

Start Docker with following command

 sudo systemctl start docker
 or
 sudo service docker start

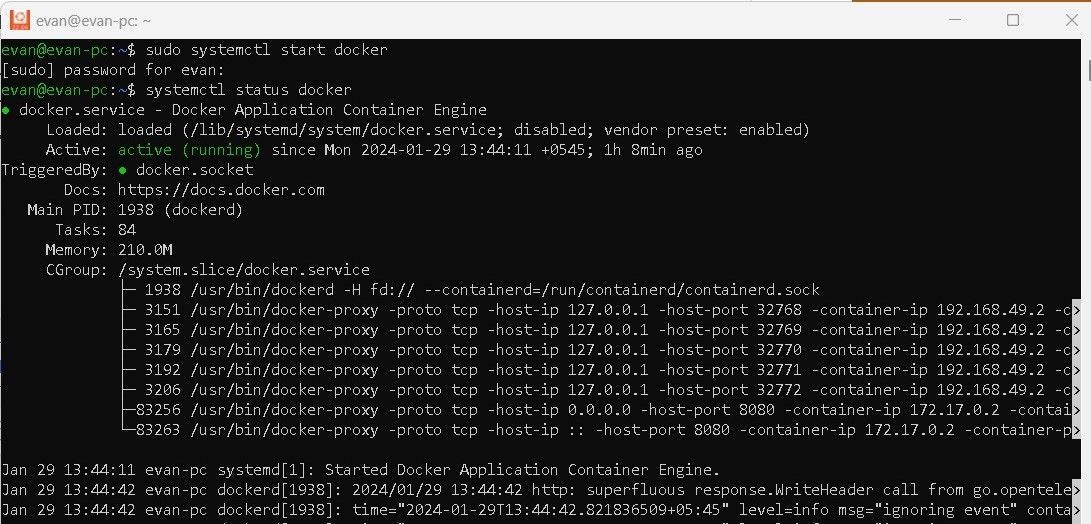

Verify docker status

systemctl status docker

Create file called "mariadb.yaml". Enter following

apiVersion: apps/v1
kind: Deployment
metadata:
  name: mariadb-deployment
spec:
  replicas: 5
  selector:
    matchLabels:
      app: mariadb
  template:
    metadata:
      labels:
        app: mariadb
    spec:
      containers:
      - name: mariadb
        image: mariadb
        resources:
          limits:
            memory: 512Mi
            cpu: "1"
          requests:
            memory: 256Mi
            cpu: "0.2"
        ports:
        - containerPort: 3306
        env:
        - name: MARIADB_ALLOW_EMPTY_ROOT_PASSWORD
          value: "0" # if it is 1 and root_password is set, root_password takes precedance
        - name: MARIADB_ROOT_PASSWORD
          value: secret

Run the following command to start Minikube cluster:

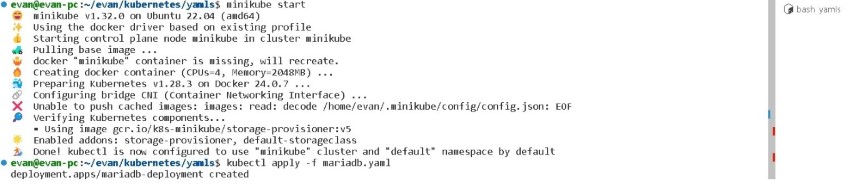

minikube start
kubectl cluster-info
kubectl apply -f mariadb.yaml

After this you can write various commands for detail info

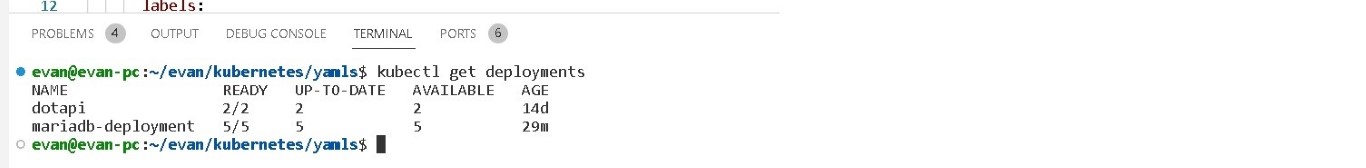

kubectl get deployments
kubectl get pods -o wide | grep minikube

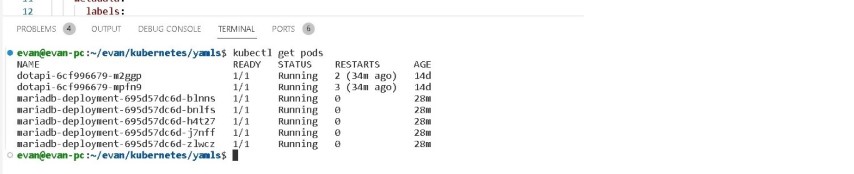

kubectl get pods

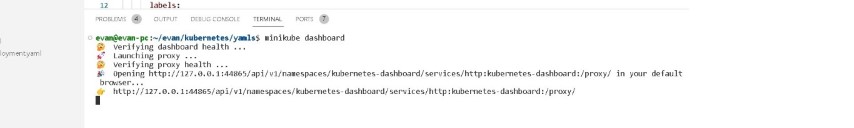

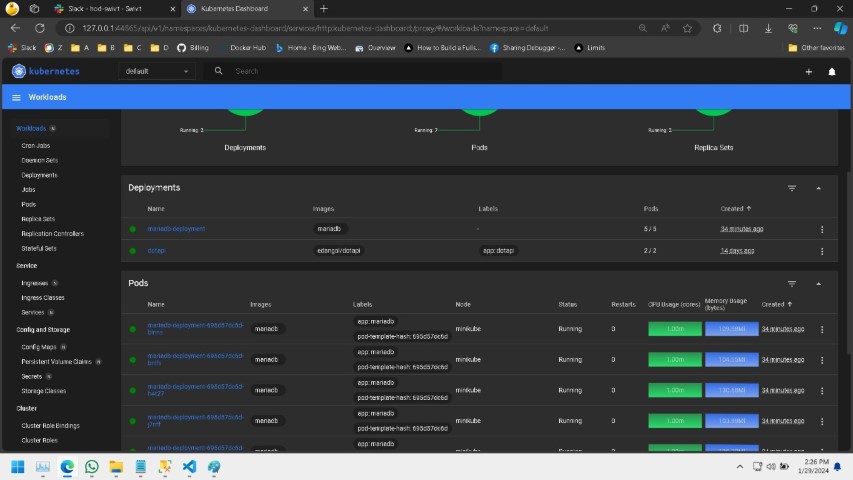

You can start Minikube Dashboard by entering following command:

minikube dashboard

To connect to mariadb enter this command:

you need to forward the port 3306 before that

 kubectl port-forward mariadb-deployment-695d57dc6d-blnns 3306:3306 #(mariadb-deployment-695d57dc6d-blnns is one of the 5 pod)

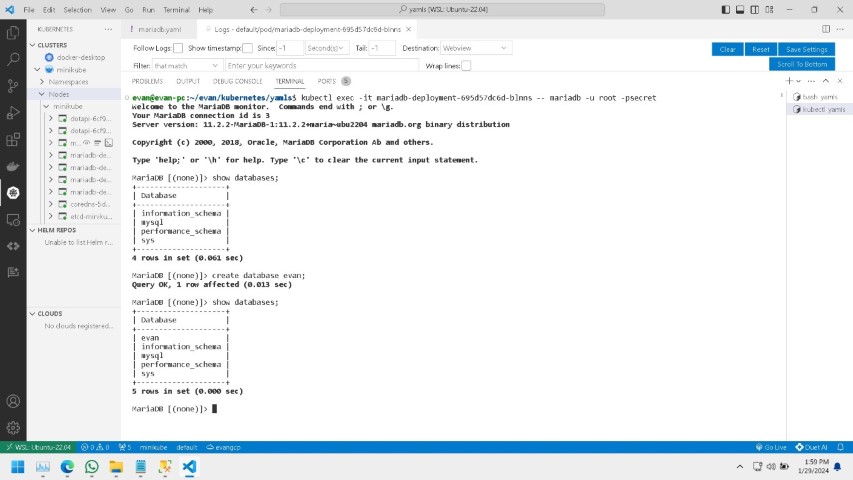

 kubectl exec -it mariadb-deployment-695d57dc6d-blnns -- mariadb -u root -psecret

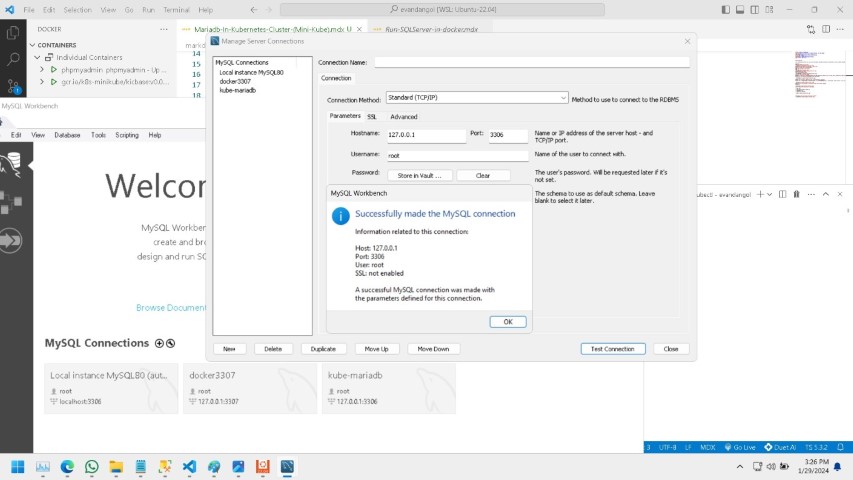

Connect from MySql Workbench

start workbench and click on new connection
use host as 127.0.0.1 and port as forwarded port in this case 3306 enter password and done.
